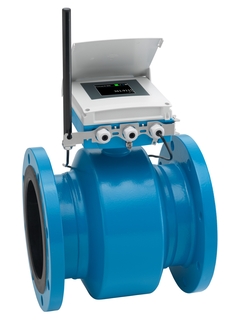

Picture of Promag W 800/5W8C battery-powered magmeter for drinking water distribution network

Proline Promag W 800
electromagnetic flowmeter

Long-lasting battery-powered magmeter with secure system integration and communication

5W8C
Se încarcă preţul
Preţurile sunt temporar indisponibile
Price on request
from CHF ??.-
Picture of Promag W 800/5W8C battery-powered magmeter for drinking water distribution network
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promag W 800 - battery-powered magmeter for drinking water distribution networks in regions without power supply

Proline Promag W 800 - battery-powered magmeter for drinking water distribution networks in regions without power supply

Heartbeat Technology

Specificaţii pe scurt

  • Max. measurement error

    Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s)

  • Measuring range

    9 dm³/min to 22500 m³/h (2.5 to 100000 gal/min)

  • Medium temperature range

    Liner material hard rubber: 0 to +70 °C (+32 to +158 °F)
    Liner material polyurethane: –20 to +50 °C (–4 to +122 °F)
    Liner material PTFE: -20 to 70°C (–4 to +158 °F)

  • Max. process pressure

    PN 40, Class 300, 20K

  • Wetted materials

    Liner: polyurethane; PTFE; hard rubber
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022)

Domeniu de aplicare

Promag W 800 is ideal for off-grid applications in the water industry, even flow measurement in direct underground installation or underwater. Promag 800 covers basic functionality, Promag 800 Advanced offers the full performance spectrum. The battery-powered transmitter provides worldwide transmission of measured data without additional energy supply. Heartbeat Technology enables measurement reliability and compliant verification.

  • The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated to the measurement of industrial or municipal water and wastewater

Device properties

  • International drinking water approvals

  • Degree of protection IP68 (Type 6P enclosure)

  • Approved for custody transfer to MI-001/OIML R49

  • Transmitter housing made of durable polycarbonate

  • Battery lifetime up to 15 years

  • Measuring intervals can be adapted individually

Avantaje

  • Long-lasting battery-powered magmeter with secure system integration and communication

  • With corrosion protection for underground installation or permanent underwater use

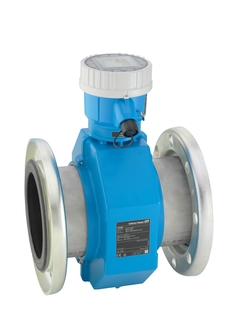

  • Flexible engineering – sensor with fixed or lap-joint process connections

  • Improved plant availability – sensor compliant with industry-specific requirements

  • Secure data storage and transmission – worldwide encrypted communication over the mobile network

  • Convenient commissioning and operation – device access via Bluetooth using intuitive SmartBlue app

  • Integrated verification – Heartbeat Technology

Clipuri video

  • Proline Promag W 800 - battery-powered, long-lasting, secure and with Heartbeat Technology

  • The Electromagnetic Flow Measuring Principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

Selecţie Lean

  • Produse clasice

  • Fiabile, robuste și ușor de întreținut

Excelenţă tehnică

Simplitate

FLEX: Lean ©Endress+Hauser

  • Produse simple

  • Ușor de ales, instalat și administrat

Excelenţă tehnică

Simplitate

  • Produse clasice

  • Fiabile, robuste și ușor de întreținut

Excelenţă tehnică

Simplitate

  • Produse superioare

  • Extrem de funcțional și convenabil

Excelenţă tehnică

Simplitate

  • Produse de specialitate

  • Conceput pentru aplicatii solicitante

Excelenţă tehnică

Simplitate

Variabil

Colecții FLEX Excelenţă tehnică Simplitate
  • F
  • L
  • E
  • X

Colecție Fundamental

Îndepliniți-vă nevoile esențiale de măsurare

Excelenţă tehnică
Simplitate
  • F
  • L
  • E
  • X

Selecţie Lean

Gestionați-vă cu ușurință procesele de bază

Excelenţă tehnică
Simplitate
  • F
  • L
  • E
  • X

Colecție Extended

Optimizați-vă procesele cu tehnologii inovatoare

Excelenţă tehnică
Simplitate
  • F
  • L
  • E
  • X

Colecție Xpert

Stăpâniţi cele mai dificile aplicaţii

Excelenţă tehnică
Simplitate

Variabil
Loading alternative products

Predecesor

Poveşti de succes

  • Picture of the water reservoir Marbach (Germany) Picture of the water reservoir Marbach (Germany)

    Smart monitoring system for potable water treatment

    With Netilion Network Insights, Oberzent's water masters now see all relevant data points of their water system on a cloud-based dashboard without having to drive to the plants.

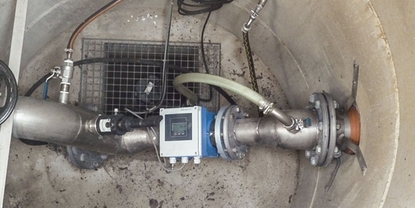

  • Wastewater sampling in a shaft Wastewater sampling in a shaft
