Micropilot FMR52 - Radar

Radar measurement
Time-of-Flight
Micropilot FMR52

For level measurement in aggressive liquids or applications with hygiene requirements

FMR52
Se încarcă preţul
Preţurile sunt temporar indisponibile
Price on request

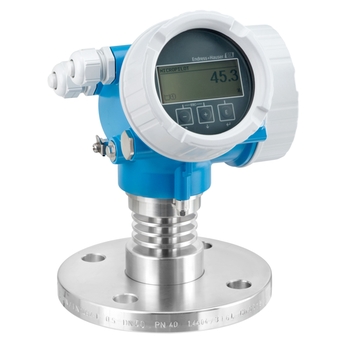

Micropilot FMR52 alu housing with flange
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR52 alu housing with flange
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR52 plastic housing with Tri-Clamp
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR52 alu housing with flange
  • F
  • L
  • E
  • X
©Endress+Hauser

Specificaţii pe scurt

  • Accuracy

    +/- 2 mm (0.08 in)

  • Process temperature

    -196...+200 °C
    (-321...+392 °F)

  • Process pressure / max. overpressure limit

    Vacuum...25 bar
    (Vacuum...363 psi)

  • Max. measurement distance

    Standard: 40 m (131 ft)
    With advanced dynamics: 60 m (197 ft)

  • Main wetted parts

    PTFE

Domeniu de aplicare

For applications in aggressive liquids Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Flush-mounted, completely PTFE-encapsulated horn antenna.

  • Process connections: Flush-mounted with cladded flange, process connections for hygiene requirements (Tri-Clamp, 11851)

  • Temperature: -196 to +200°C (-320,8 to +392°F)

  • Pressure: -1 to +25bar (-14.5 to +362psi)

  • Maximum measuring range: 40m (131ft), 60m (197ft) for enhanced dynamics

  • Accuracy: ±2mm

  • K-band: 26GHz

  • International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approval

Avantaje

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Reliable non-contact measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle

  • Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost

Clipuri video

  • Time-of-Flight measuring principle

  • Commissioning movie for Micropilot FMR5x free space radar and Levelflex FMP5x guided radar

  • Unique HistoROM data management concept for safe level measurement

  • Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking

  • Micropilot with Advanced Dynamics offering more reliable measuring signals even in the case of turbulences

  • Micropilot FMR5x with Advanced Diagnostic functions offers foam detection
